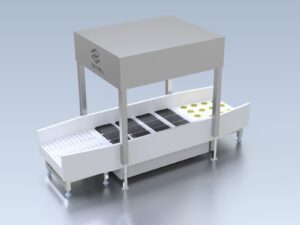

Single parcel separation conveyor system using advanced vision sensor camera to collect the information about package’s position, package’s outline, package’s adhesion degree, then transfer this information to the ‘Recognition & Algorithm Software’, So as to realize the single piece separation of disordered packages with horizontal multiple overlaps。 it is mainly composed of Divergence Model, Separation Model, Vision System Model, Electrical Control Model, and Centered Section. It can be designed at the front of various automated sorting solutions. The main function is to auto-separate, auto-space, and auto-queue up the mixed packages before entering the sorting lines, so that the messy packages become single rows according to the specified spacing. The "formation" passes in an orderly manner and enters DWS or automated sorting equipment one by one, which greatly improves the success rate and accuracy of parcel sorting.
Item | Parameter | Item | Parameter |
Working Mode
工作模式: |
Separation Mode or Pipeline Mode
分离模式或管道模式 |
Package Shape
包裹类型: |
“Non-Rolling” Packages
“非滚动”包装 |
Capacity
容量: |
5000PPH(Packages Per Hour) | Speed of Divergence Module
发散模块的速度: |
0.8m/s~1.2m/s |
Package Weight
包裹重量: |
Min 0.2kg~Max 35kgs | Speed of Separation Module
分离模块的速度: |
1.2m/s~2m/s |
Package Dimensions
包裹尺寸: |
100*100*15mm~1000*1000*1000mm | Separation Success Rate
分离成功率: |
≥99% |
Applications
应用: |
Not limited by the degree of clutter and density
不受杂乱程度和密度的限制 |
Working Temperature
工作温度: |
-10~50 °C |
Suitable for separating packages which stacked together适用于分离堆积在一起的包裹 | Working humidity
工作湿度: |
20%~90% RH(Non-Condensing) |
