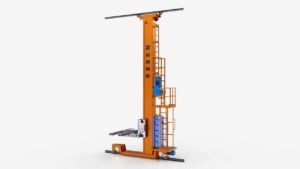

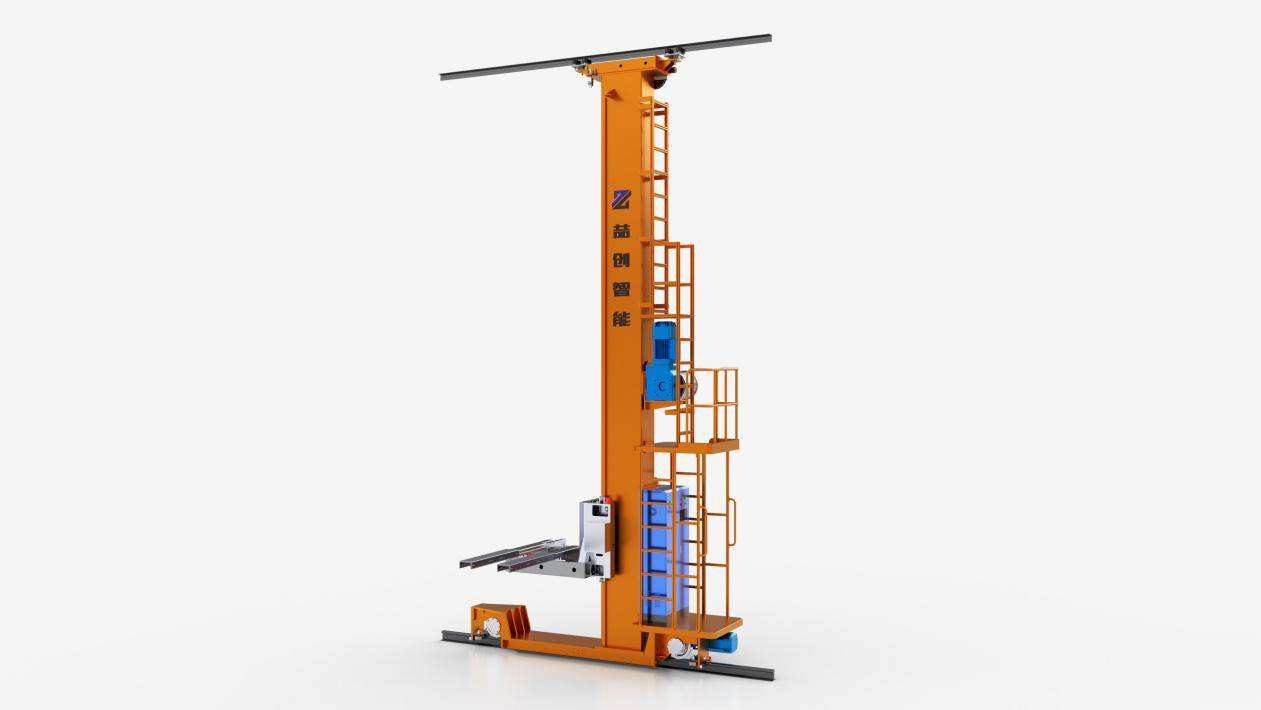

Stackers can be divided into light, heavy and mini loads according to the load capacity, high and low stackers according to the loading height, and single-depth and double-depth stackers according to the loading depth. The rail roadway stacker is mainly composed of the machine body (including column, upper beam, and lower beam), cargo platform, horizontal running mechanism, lifting mechanism, fork mechanism, and electrical control device. The stacker is controlled by PLC and driven by frequency conversion speed regulation. Communication between the stacker and ground equipment through infrared optical communication. Each PLC and the monitoring computer form a network through a bus connection. There is an operator interface on the stacker. The stacker can be operated locally or online by the upper computer. The monitoring computer and the management computer are connected via TCP/IP protocol, and the PLC and the inverter are connected via Profibus.
名称 Item | 生产厂商 Brand |
电机减速机 Motor reducer | SEW |
PLC | 德国SIEMENS |
变频器 Inverter | SEW |
继电器 Relay | OMRON |
交流接触器 AC contactor | Schneider |
光电开关 Photoelectric switch | OMRON |
空气开关 Air switch | Schneider |
激光测距仪 Laser rangefinder | Leuze、Sick |
旋转编码器 Rotary encoder | OMRON |
红外通讯装置
Infrared communication device |
Leuze |
通讯模块 Communication module | SIEMENS |
堆垛机结构形式 Stacker structure | 双立柱型堆垛机
Dual -pillar Stacker |
|
货架结构形式 Racking structure | 3套单伸位/2套双伸位
3 position of single extension/2 position of dual extension |
|
堆垛机高度 Stacker Height | 21300mm | |
货叉品牌 Fork brand | 长臂猿 | |
搬运单元尺寸 Dimension of handling unit | W1200mm×D1200mm×H1200/1400/1500/1600mm(不含母托盘H150mm)
(Not include the Maternal pallet H150mm) |
|
搬运单元重量 Weight of handling unit | 1200kg | |
最低取货高度 Minimum pickup height | 750mm | |
顶层高度 Top -level height | 750mm | |
速度参数 Speed parameters | 水平运行速度Horizontal running speed | 120m/min(变频调速)(frequency control) |
升降速度 Lift speed | 40m/min(变频调速)(frequency control) | |
货叉速度 Fork speed | 空载:40m/min;载货:30m/min
Empty load: 40m/min; cargo Load: 30m/min |
|
定位精度 Positioning accuracy | 水平运行 Horizontal running | ≤±5mm |
提升 Lift | ≤±5mm | |
货叉 Fork | ≤±3mm | |
定位方式 Positioning | 水平运行 Horizontal running | 激光测距+认址片
Laser ranging+site film+site film |
提升 Lift | 激光测距+认址片Laser ranging+Site film | |
货叉 Fork | 编码器+限位开关Coder+limit switch | |
通讯方式 Communication | 无线AP通讯 Wireless AP communication | |
操作方式 Operation | 手动/半自动全自动 Manual/semi -automatic/ fully automatic | |
供电方式 Power supply | 供电滑触线 Power supply sliding contact line | |
电源规格 Power Specifications | 380V±5%,50Hz±5%,三相五线制交流电
Three -phase and five -line system AC power |
|
噪声 Noise Decibel: | ≤75dB |
